+ Motion 1.0
278 cm version
250 cm version
Material:
Panels in sandwich construction with a surface made of powder-coated aluminum
Mechanical components manufactured in Germany
Body made of wood-based materials
Annual consumption for one cycle per day: 365 x 344 Watts x travel time 35 sec. = 1.22 kWh
Dimensions (Width x Height in cm)
250 x 245 to 255
278 x 245 to 255
Finishes:
CE - Declaration of Conformity
Product Description

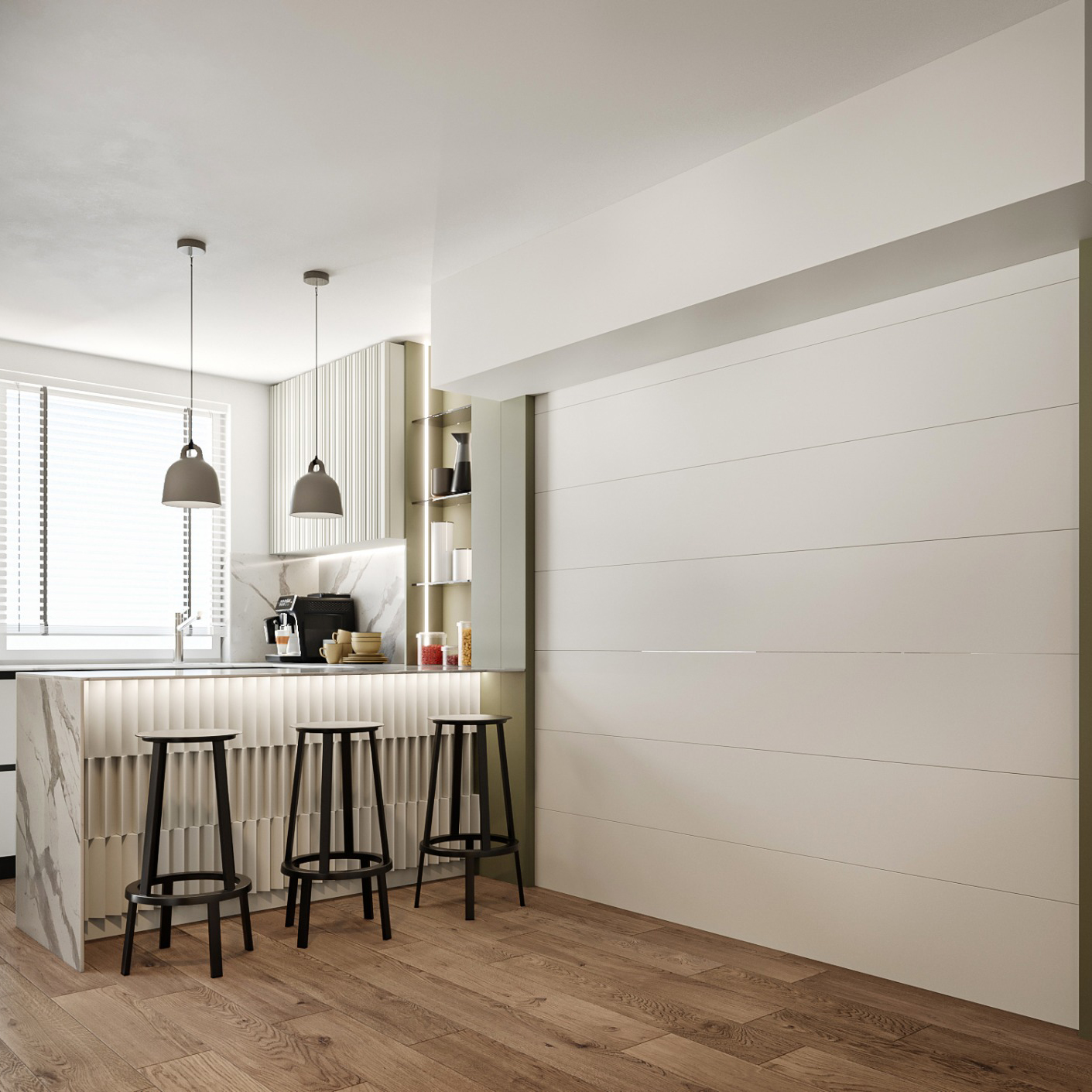

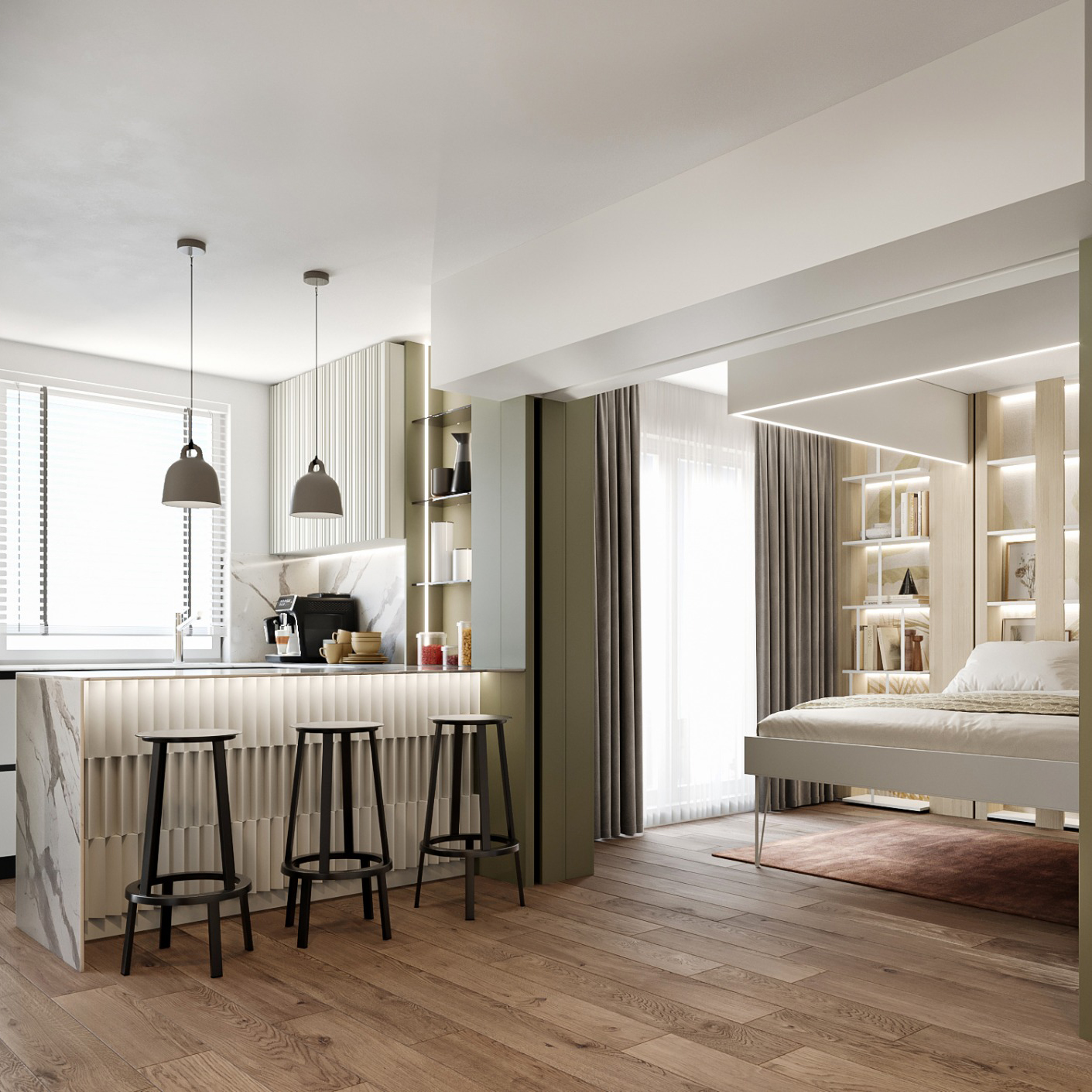

The product is an electrically movable partition wall.
A tubular motor moves the panels using chain drives that ensure synchronous upward or downward movement of the wall.
By turning and holding the key on the cladding, the wall can be moved motorized continuously between the pre-programmed endpoints.
The partition wall is designed for operation at 230V.
The endpoints are set by professional staff during installation.
*Alpin White W1100 ST9
Safety
For safety, a key switch with an emergency stop function from Inprojal is installed, which immediately interrupts the power supply to the motor electronics when the key is released, bringing the wall to an immediate stop.
If one unlocks the interruption of power supply to the motor electronics with the key, the wall can again be moved up or down to the endpoint referenced by the technician.
Installation Height / Assembly
The partition wall can be mounted from a room height starting at 245 cm.
Installation must be carried out exclusively by our trained professional staff.
